HES 4500C Series Electric Strike Complete Pac
$1,199.99
The strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.
The 4500C series electric strike is designed for installation in 2″ UL 10C fire rated frames with 1/2″ drywall penetration. It features a low profile 1-3/8″ depth, heavy-duty stainless steel construction. The strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.

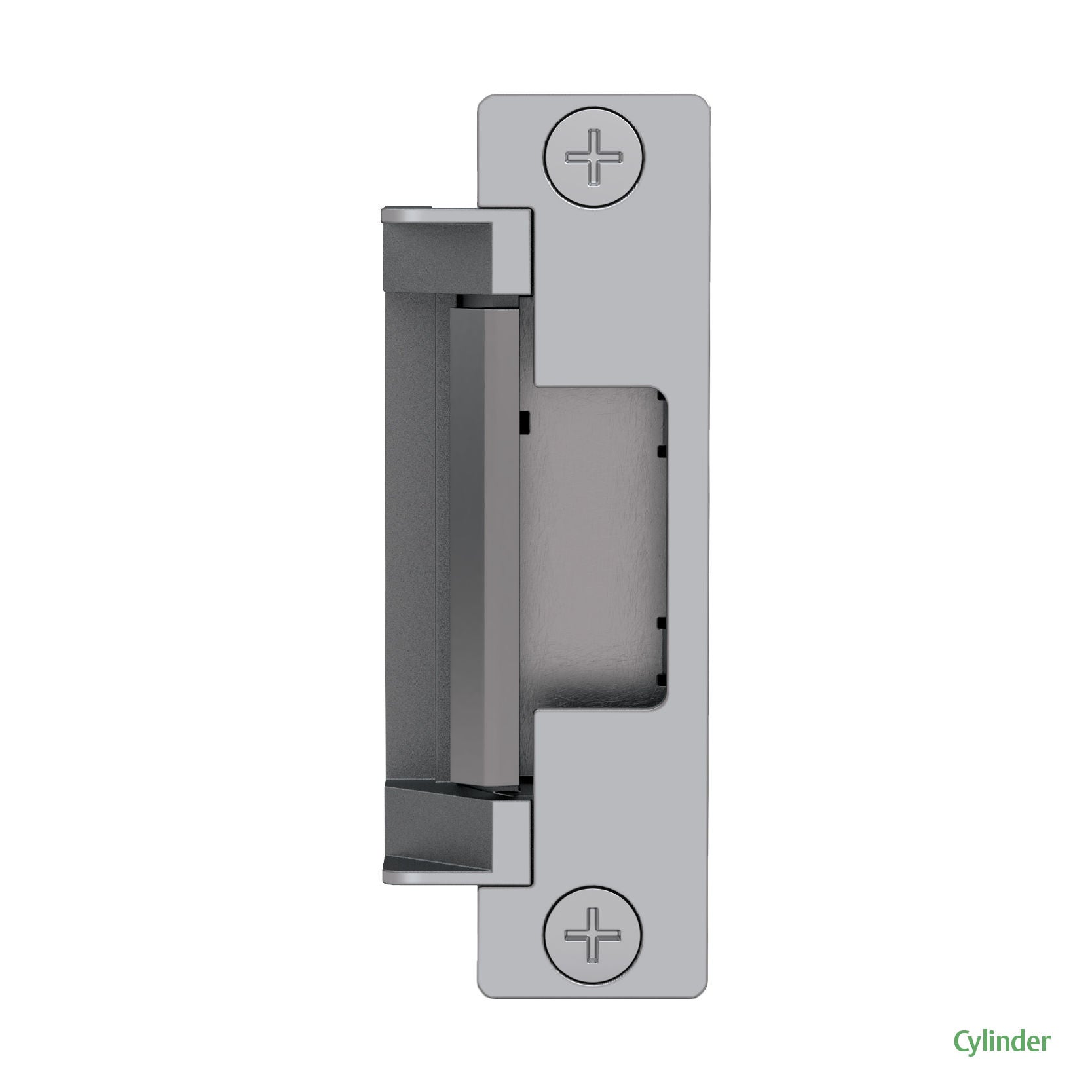

The HES 4500C Series Electric Strike is designed to maintain 1/2″ drywall penetration even in a 2″ UL 10C fire rated frame. The 4500C features a low profile 1-3/8″ depth and heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware. The 4500C includes two faceplates designed to accommodate either cylindrical or mortise locksets up to a 3/4″ throw latchbolt.
Product Features
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 100 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Two faceplates provided to accommodate a variety of locksets
- Non-handed
- Internally mounted solenoid
- Accommodates up to a 3/4″ latchbolt
- Strike body depth 1-3/8″
- Plug-in connector
- Trim enhancer

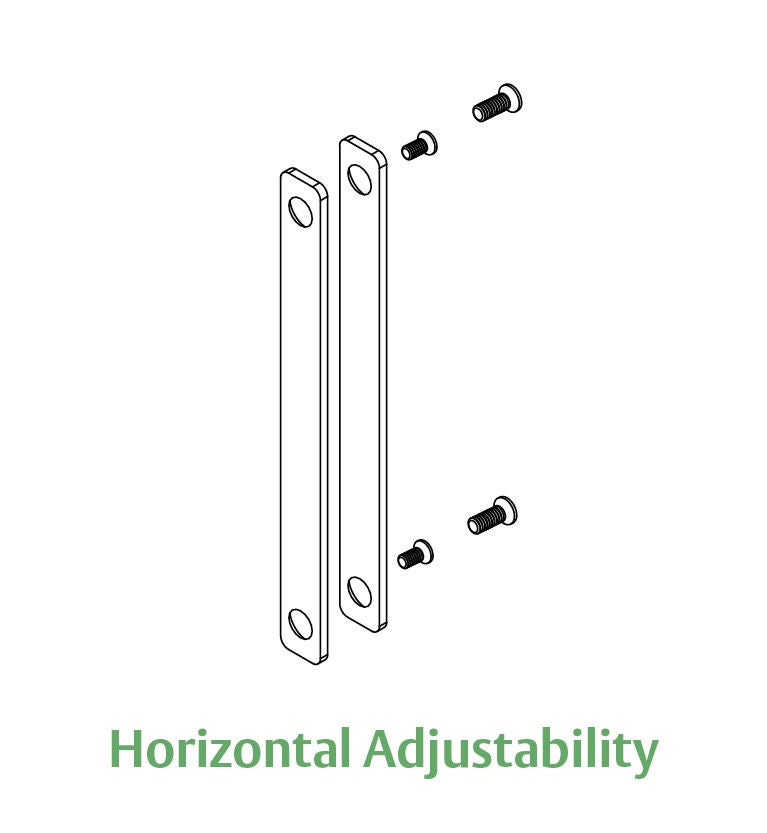

- Full keeper shims for horizontal adjustment
- SecuriCare five-year, no-fault, no questions asked warranty (Addition of SMART Pac® III extends the warranty to 10 years)
| Finish | 606 Satin Brass, clear coated, BSP Black suede powder coat, 629 Bright stainless steel, 613E Dark oxidized satin bronze-equivalent, 605 Bright Brass, clear coated, 630 Satin stainless steel, 612 Satin bronze, clear coated |
|---|
