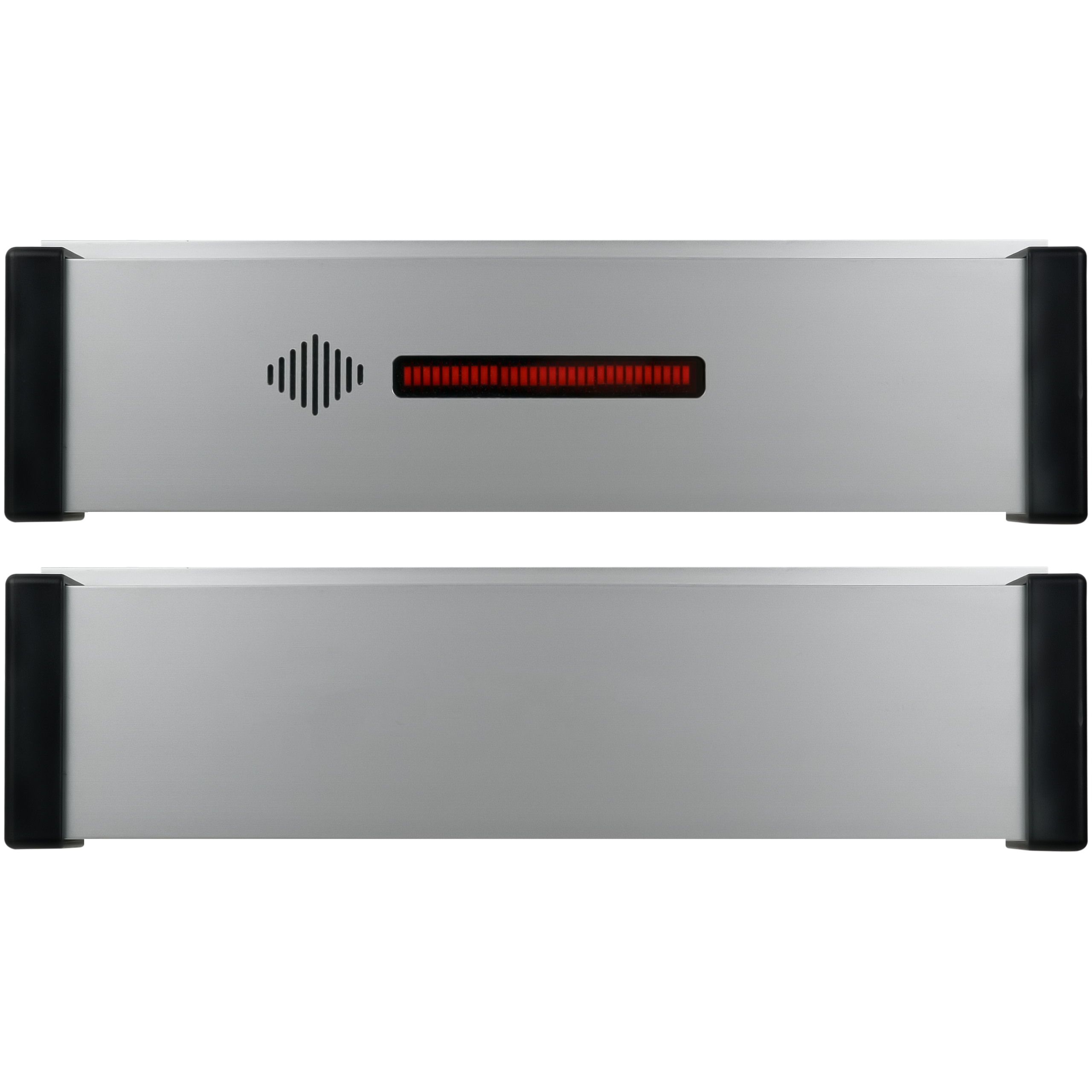

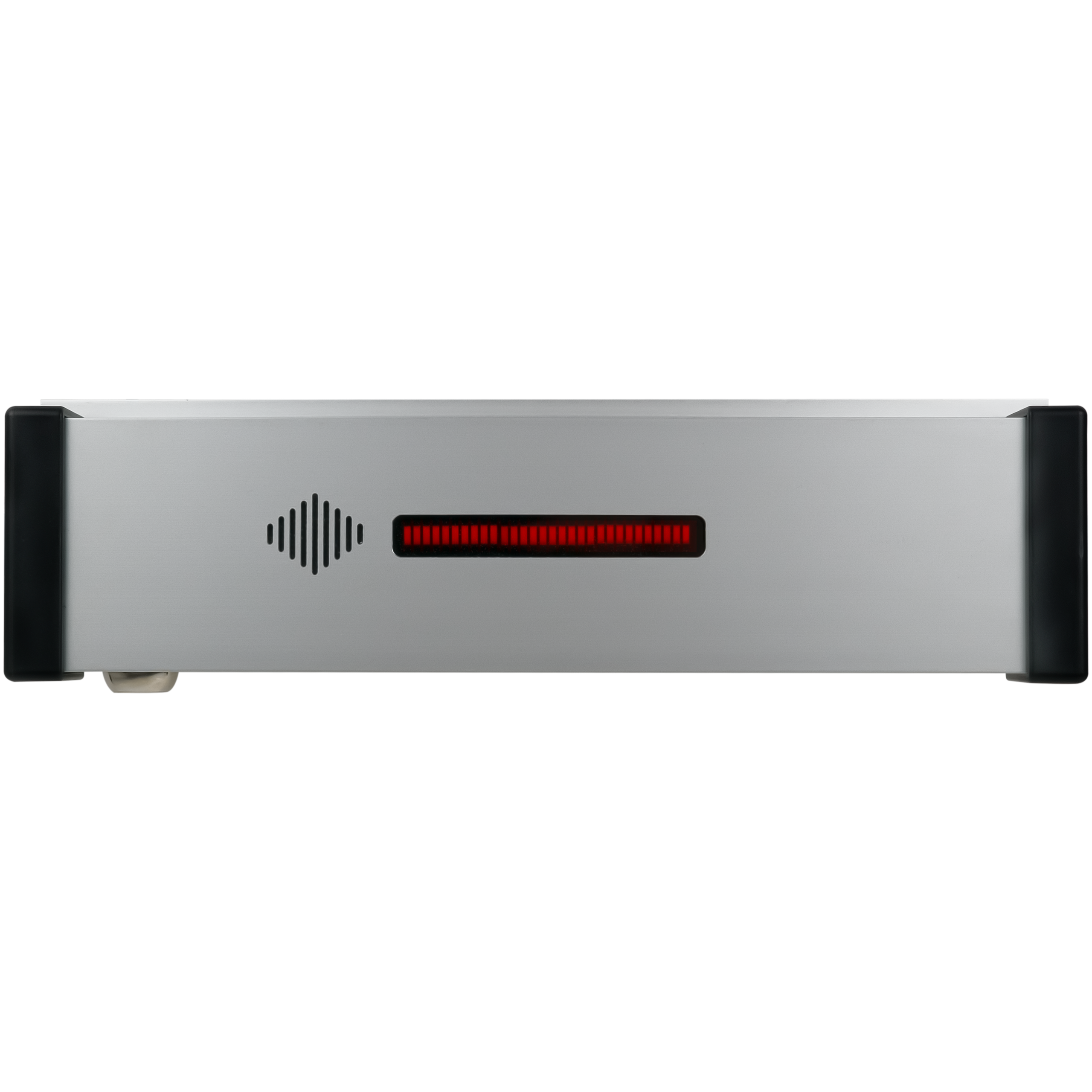

Camden CX-DE1200 Series Exit Watch™ Delayed Egress Magnetic Locks

CX-DE1200 Series delayed egress magnetic locks feature heavy-duty construction, 1,200 lbs. holding force and a range of models and field selectable operation for varied applications, including retail, institutional or healthcare buildings.

Delayed egress magnetic locks are UL and ULC listed with a selection of models factory configured to meet North American code requirements. The innovative human voice and LED count down timer offers immediate comprehension of status for building occupants.

Features:

• Holding Force up to 1,200 Lbs.
• Field Selectable Exit Delay Tme 15 / 30 Seconds
• Nuisance Delay Period Either 1, 2 or 3 Seconds
• 75dB Voice Alerts With LED Segment Bar Displaying Countdown Time & Field Selectable Languages
• Automatic / Manual Start-up On Power Restore
• Single gang 90db sounder provided for Alarm alerts
• Auto Sensing Voltage Power Input 12/24 VDC
• Power Polarity Protection
• Optional Connection for Auxiliary Lock (Double Leaf Door)
• Hall Effect Sensor Monitoring Output
• Anti-tamper status
• Tailgating Prevention – Door Will Re-lock As Soon As It Closes
• Anti-Pass Back / Auto Re-lock:
  If Door Doesn’t Open After The Count Down, The Door Will Automatically Re-lock

Optional Features:

• Door Position Status
• Bond Status

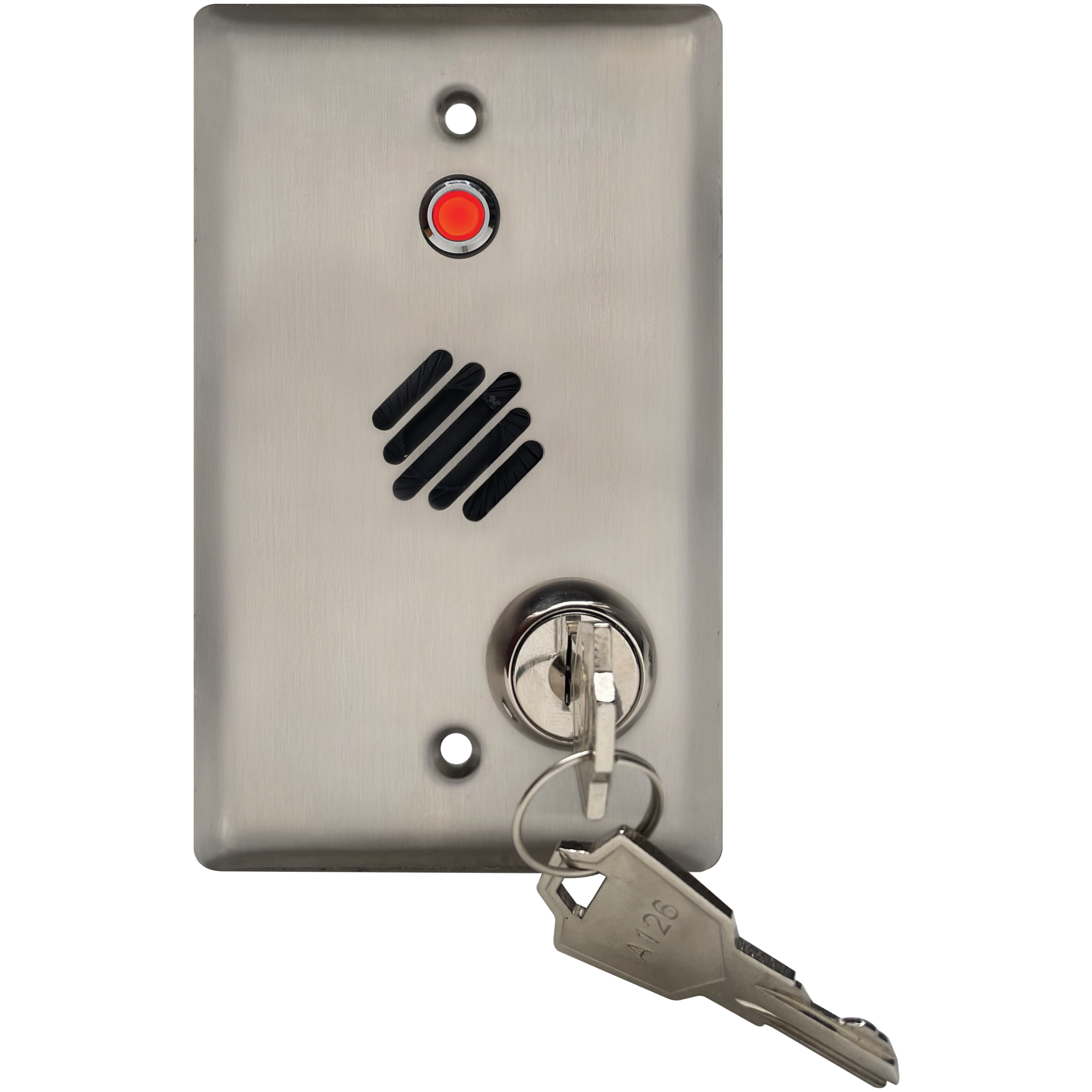

• Remote Reset and Bypass via Keyswitch
